MGT

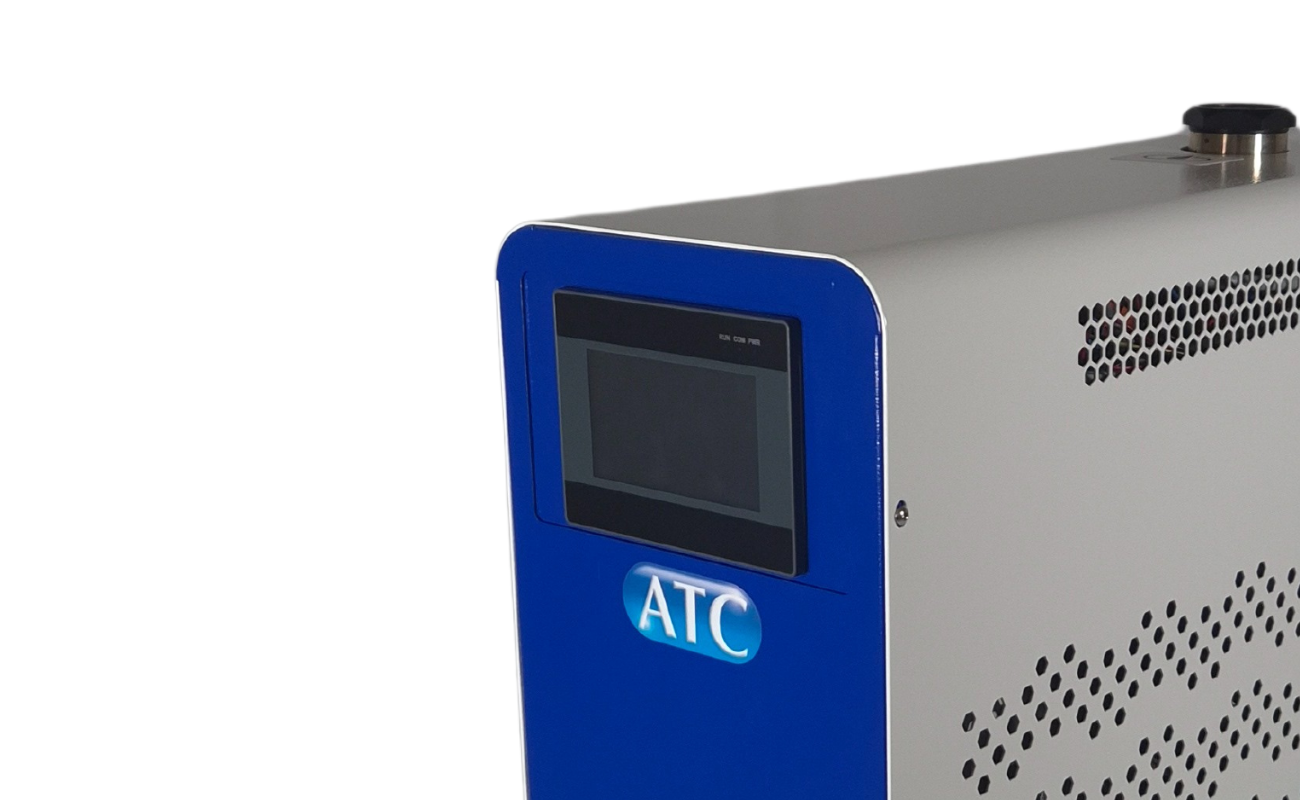

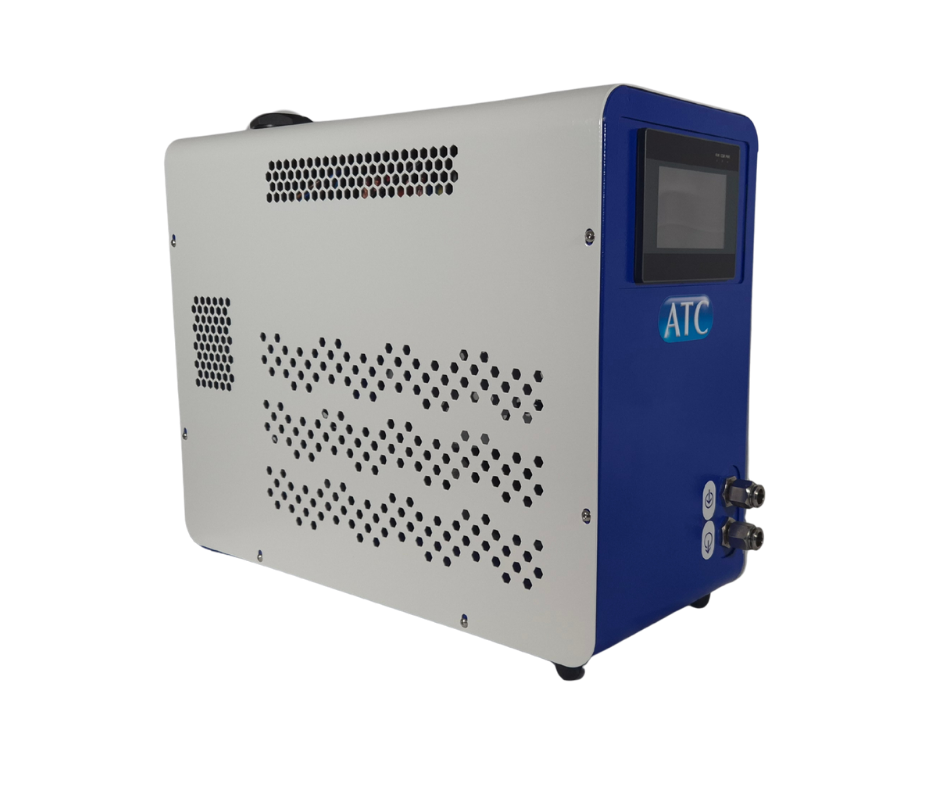

The MGT chiller from Applied Thermal Control is a modern, sophisticated, and environmentally conscious cooling solution engineered for laboratory and industrial applications. Designed to replace the Mini, the MGT features an advanced touchscreen interface for intuitive control, delivering enhanced performance with precise temperature management. Providing a cooling capacity of 0.5kW, the MGT ensures reliable temperature regulation for various applications.
Utilising R290, a natural refrigerant with a low global warming potential (GWP), the MGT is an eco-friendly choice for temperature control, combining cutting-edge technology with ease of use.
Enclosure Size
Height 428mm
Width 220mm
Depth 516mm
Width 220mm
Depth 516mm
Power Supply Options
(115Vac, 1~, 60Hz) 1-spec
220-240Vac, 1~/2~, 50/60Hz 5-spec
220-240Vac, 1~/2~, 50/60Hz 5-spec
Cooling Capacity
500W Cooling Capacity at
20°C +/- 0.1°C Temperature Stability
20°C +/- 0.1°C Temperature Stability
Temperature Range
+4°C – +35°C (standard)
-10°C – +60°C (extended)
-10°C – +60°C (extended)
Document downloads
MGT – 500W Recirculating Chiller
0.5kW
Administrative Data
ATC Model Name
MGT
ATC K-Series Equivalent
Mini
Physical Attributes
Physical dimensions (mm)
Height 428mm
Width 220mm
Depth 516mm
Width 220mm
Depth 516mm
Construction
Sheet steel gauge 1.5mm.
Powder coated
Powder coated
Mounting Type
Benchtop
Acceptable Environment
Indoors (standard)
Dry Weight (kg)
30kg
Wet Weight (kg)
31kg
Noise Level (dB(A)) at 1 meter
Product IP Rating
IP20
Toolless Access
No
Enclosure Drawing Number
MA890
Airfreight
Send charged
Sea Freight
Send charged
Temperature Control Attributes

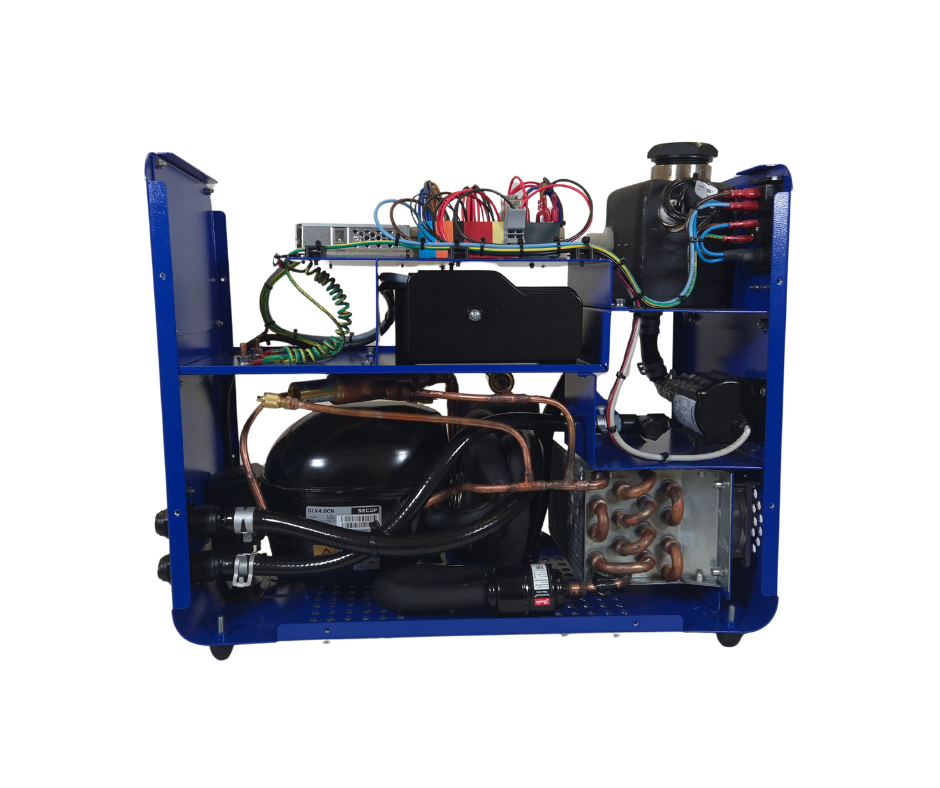

Cooling/Refrigeration Technology
Vapour Compression
Compressor Type
Reciprocating
Evaporator Technology
Brazed Plate Heat Exchanger (BPHE)
Duty at +20°C ambient, Setpoint +20°C (kW)
0.5kW
Refrigerant & Charge
R290, 90g
Ambient Temperature Range (standard)
+4°C to +25°C
Control Method
PID
Temperature Stability (with constant load)
±0.1˚C
Temperature Resolution
±0.1˚C
Maximum Total Heat Rejection
600W
Cooling Fan Airflow
73cfm
Water Circuit Attributes
Designed Nominal Process Fluid Flowrate
3lpm
Design Nominal Pressure
2 Bar
Process Temperature Range (Standard)
+4 to +35°C
Process Temperature Range (Extended Low Temp)
-10°C
Process Temperature Range (Extended High Temp)
60°C trip
Maximum Return Line Temperature (Standard)
60°C trip
Maximum Return Line Temperature (Extended)
60°C trip
Pump Options
3lpm 24V pump only
Visible Level Indicator
Yes
Integrated Drain
No
System Volume
0.85l
Tank Type
Flow-through
Flow and Pressure Control
Not Available
Connection Size (fittings to convert size as needed available)
12mm push-fit
Construction Materials
Steel enclosure
Fluid Compatibility
Hexid Fluid, Sterile Water
Electrical Attributes
24VDC – L-Spec
–
(90-264Vac, 1~/2~, 50-60Hz) U-spec
–
(230Vac, 1~, 50Hz) 0-spec
–
(115Vac, 1~, 60Hz) 1-spec
Available, 4A (Heater 4.5A)
(208-220Vac, 1~/2~, 60Hz) 2-spec
–
(400Vac, 3~, 50Hz) 3-spec
–
(460Vac, 3~, 60Hz) 4-spec
–
220-240Vac, 1~/2~, 50/60Hz 5-spec
Available, 3A (heater 3.5A)
(Switchable 208Vac, 1~/2~, 60Hz | 220Vac, 1~/2~, 60Hz | 230Vac, 1~, 50Hz) 6-spec
–
(Switchable 115Vac, 1~, 60Hz | 230Vac, 1~, 50/60Hz) 7-spec
Available, see SA63
(208Vac, 3~, 60Hz) 8-spec
–
(208-230Vac, 1~/2~, 50/60Hz) 9-spec
–
Safety Interlocks, Protections, Standards, and Indicators
1st Party Approvals
CE,UKCA
3rd Party Approvals
–
Empty Fluid Reservoir Alarm
Process stop interlock
Low Fluid Flow Alarm
Visual, HMI
Temperature Out of Range Alarm
Visual, HMI
Compressor HP Switch
Standard
Interlock Restored, Restart Mode
Automatic
Overcurrent Fault-Cleared Restart Mode
Manual
Overcurrent Protection
Fused
Motor Thermal Overload
–
Warranty Options
2 year parts, 1 year labour
