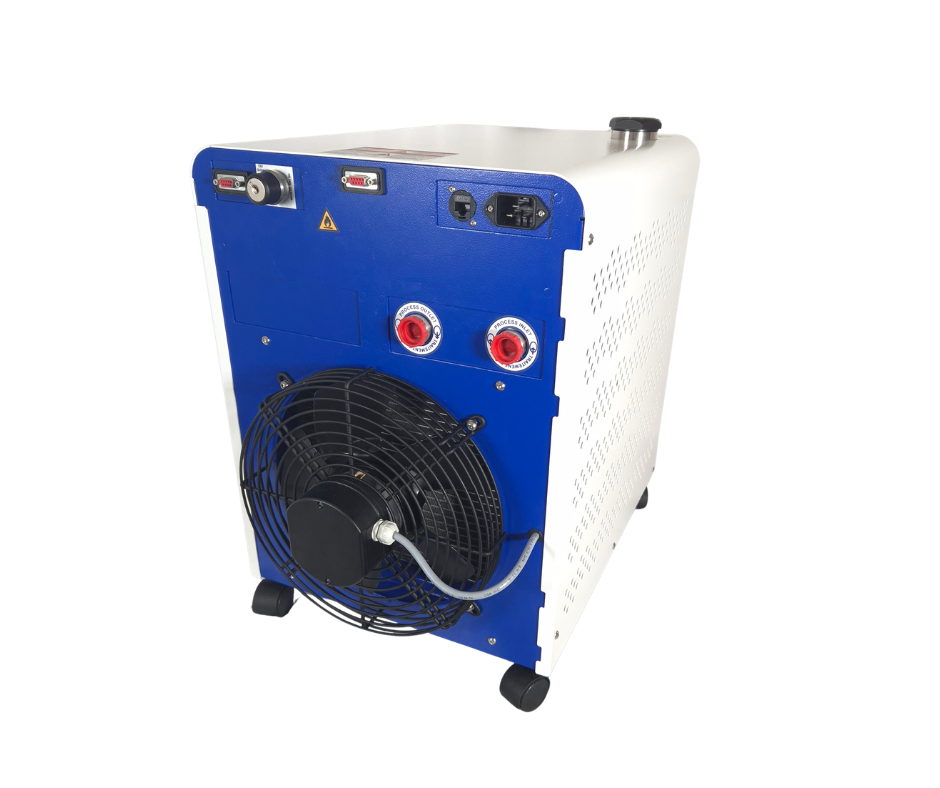

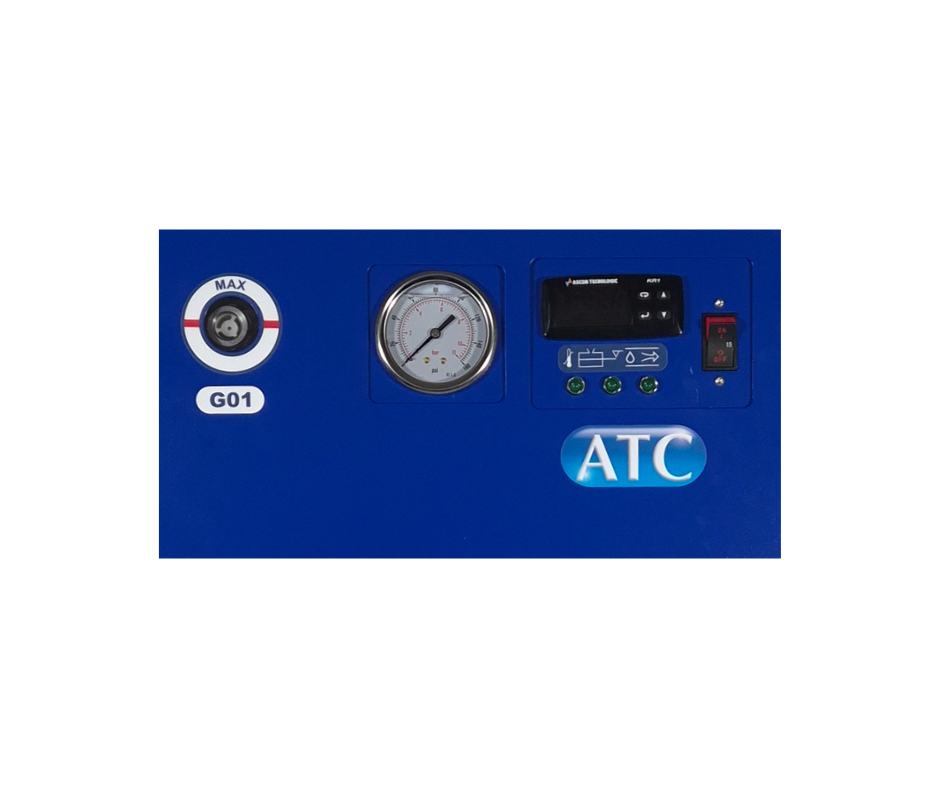

G01
The G01 recirculating chiller from Applied Thermal Control is an advanced, energy-efficient cooling solution designed with sustainability at its core. Engineered for laboratory and industrial applications, the G01 delivers precise temperature control with two available variants: a standard variant providing 1.4kW cooling capacity*, and a high ambient variant offering 1.6kW cooling capacity*. Its environmentally conscious design incorporates R290, a natural refrigerant, offering a Global Warming Potential of 3 – a significant reduction in environmental impact without sacrificing performance.
*1.4kW/1.6kW cooling capacity at a +20°C set point in a +20°C ambient environment
Enclosure Size
Height 554mm
Width 385mm
Depth 564mm
Width 385mm
Depth 564mm
Power Supply Options
(230Vac, 1~, 50Hz) 0-spec
(Switchable 115Vac, 1~, 60Hz | 230Vac, 1~, 50/60Hz) 7-spec
(Switchable 115Vac, 1~, 60Hz | 230Vac, 1~, 50/60Hz) 7-spec
Cooling Capacity
Standard: 1.4kW Cooling Capacity at
20°C +/- 0.1°C Temperature Stability
High Ambient: 1.6kW Cooling Capacity at
20°C +/- 0.1°C Temperature Stability
20°C +/- 0.1°C Temperature Stability
High Ambient: 1.6kW Cooling Capacity at
20°C +/- 0.1°C Temperature Stability
Temperature Range
+4°C – +35°C (standard)
-20°C – +90°C (extended)
-20°C – +90°C (extended)
Document downloads
G01 Recirculating Chiller
Standard Variant – 1.4kW
High Ambient Variant – 1.6kW
Administrative Data
ATC Model Name
G01
G01 High Ambient
ATC K-Series Equivalent
KT1
KT1/K1
Physical Attributes
Physical dimensions (mm)
Height 554mm
Width 385mm
Depth 564mm
Width 385mm
Depth 564mm
Height 554mm
Width 385mm
Depth 564mm
Width 385mm
Depth 564mm
Construction
Sheet steel gauge 1.5mm.
Powder coated
Powder coated
Sheet steel gauge 1.5mm.
Powder coated
Powder coated
Mounting Type
Castors, 2 swivel, 2 braked (standard)
Castors, 2 swivel, 2 braked (standard)
Acceptable Environment
Indoors (standard)
Indoors (standard)
Dry Weight (kg)
49kg
49kg
Wet Weight (kg)
52kg
52kg
Noise Level (dB(A)) at 1 meter
≤68
–
Product IP Rating
IP20
IP20
Toolless Access
No
Enclosure Drawing Number
MA836
MA836
Airfreight
Send charged
Send charged
Sea Freight
Send charged
Send charged
Temperature Control Attributes
Cooling/Refrigeration Technology
Vapour Compression
Vapour Compression
Compressor Type
Fixed speed reciprocating
Fixed speed reciprocating
Evaporator Technology
Brazed plate heat exchanger (BPHE)
Brazed plate heat exchanger (BPHE)
Duty at +20°C ambient, Setpoint +20°C (kW)
1.4kW
1.6kW
Duty at +30°C ambient, Setpoint +20°C (kW)
N/A
1.5kW
Cooling capacity with ‘setpoint’ 20°K above ambient/primary coolant
N/A
2kW
Refrigerant u0026 Charge
R290, 95g
R290, 95g
Ambient temperature range (standard)
+4°C to +20°C
+4°C to +30°C
Ambient temperature range (extended)
N/A
+4°C to +35°C
Control Method
PID, Solenoid valve
PID, Solenoid valve
Temperature Stability (with constant load)
±0.1°C
±0.1˚C
Temperature Resolution
±0.1°C
±0.1˚C
Maximum Total Heat Rejection
2.2kW
2.2kW
Cooling Fan Airflow
400CFM (680m³/h)
824CFM (1400m³/h)
Water Circuit Attributes
Designed Nominal Process Fluid Flowrate
5, 10, 17l/min
5, 10, 17l/min
Design Nominal Pressure
0-4 Bar
0-4 Bar
Process Temperature Range (Standard)
+4 to +35°C
+4 to +35°C
Process Temperature Range (Extended Low Temp)
20°C
20°C
Process Temperature Range (Extended High Temp)
+90°C
+90°C
Maximum Return Line Temperature (Standard)
60°C
60°C
Maximum Return Line Temperature (Extended)
90°C
90°C
Pump Options
P5, P10, P17
P5, P10, P17
Visible Level Indicator
Yes
Yes
Integrated Drain
Yes
Yes
System Volume
2.75L
2.75L
Tank Type
Stainless steel, flow-through
Stainless steel, flow-through
Flow and Pressure Control
Internal, PRV, 20-150psi
Internal, PRV, 20-150psi
Connection Size (fittings to convert size as needed available)
1/2″ BSPPF
1/2″ BSPPF
Construction Materials
Steel enclosure
Steel enclosure
Fluid Compatibility
Hexid Fluid, Sterile Water, Propylene Glycol, DI water
Hexid Fluid, Sterile Water, Propylene Glycol, DI water
Electrical Attributes
24VDC – L-Spec
–
–
(90-264Vac, 1~/2~, 50-60Hz) U-spec
–
–
(230Vac, 1~, 50Hz) 0-spec
5A (Heater 8A)
5A (Heater 8A)
(115Vac, 1~, 60Hz) 1-spec
–
–
(208-220Vac, 1~/2~, 60Hz) 2-spec
–
–
(400Vac, 3~, 50Hz) 3-spec
–
–
(460Vac, 3~, 60Hz) 4-spec
–
–
220-240Vac, 1~/2~, 50/60Hz 5-spec
–
–
(Switchable 208Vac, 1~/2~, 60Hz | 220Vac, 1~/2~, 60Hz | 230Vac, 1~, 50Hz) 6-spec
–
–
(Switchable 115Vac, 1~, 60Hz | 230Vac, 1~, 50/60Hz) 7-spec
115V 8A (Heater 12A) / 230V 5A (Heater 6.5A)
115V 8A (Heater 12A) / 230V 5A (Heater 6.5A)
(208Vac, 3~, 60Hz) 8-spec
–
–
(208-230Vac, 1~/2~, 50/60Hz) 9-spec
–
–
Safety Interlocks, Protections, Standards, and Indicators
1st Party Approvals
CE, UKCA
CE, UKCA
3rd Party Approvals
–
Empty Fluid Reservoir Alarm
Process stop interlock
Process stop interlock
Low Fluid Flow Alarm
Visual, lamp
Visual, lamp
Temperature Out of Range Alarm
Visual, lamp
Visual, lamp
Compressor HP Switch
Standard
Standard
Interlock Restored, Restart Mode
Automatic
Automatic
Overcurrent Fault-Cleared Restart Mode
Manual
Manual
Overcurrent Protection
Standard, via MCB
Standard, via MCB
Motor Thermal Overload
Internal, automatic restart
Internal, automatic restart
Warranty Options
2 year parts, 1 year labour
Enhanced warranty options
Enhanced warranty options
2 year parts, 1 year labour
Enhanced warranty options
Enhanced warranty options
